产品介绍

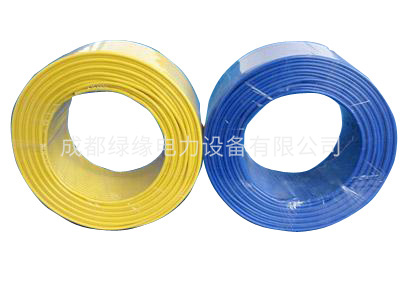

铝芯聚氯乙烯绝缘聚氯乙烯护套平行电线适用于交流额定电压450/750V及以下的家用电器、小型电动工具、仪器仪表及动力照明等装置的连接。
BLVVB线(铝芯聚氯乙烯绝缘聚氯乙烯护套平行电线)产品参数:
BVVB BLVVB 300/500V JB8734.2-1998 | |||||||||||
芯数 | 导体结构 | 绝缘 | 护套厚度 | 材料净重 | 成品近似重量 | ||||||
根/单线直径 | 直径mm | 厚度mm | 直径mm | 铜Cu | 铝Al | PVC绝缘 | PVC护套 | 铜Cu | 铝Al | ||
2x0.75 | 1/0.97 | 0.97 | 0.6 | 2.17 | 0.9 | 13.1 |
| 8.1 | 17.0 | 38.2 |
|
2x1.0 | 1/1.13 | 1.13 | 0.6 | 2.33 | 0.9 | 17.8 |
| 8.9 | 18.0 | 44.7 |
|
2x1.5 | 1/1.38 | 1.38 | 0.7 | 2.78 | 0.9 | 29.9 |
| 12.5 | 21.0 | 63.4 |
|
2x2.5 | 1/1.78 | 1.78 | 0.8 | 3.38 | 1.0 | 44.2 | 13.4 | 17.8 | 28.0 | 90.1 | 59.2 |
2x4 | 1/2.25 | 2.25 | 0.8 | 3.85 | 1.0 | 70.7 | 21.5 | 21.0 | 31.4 | 123.1 | 73.9 |
2x4 | 7/0.85 | 2.55 | 0.8 | 4.20 | 1.0 | 71.2 |
| 23.9 | 33.9 | 129.0 |
|
2x6 | 1/2.76 | 2.76 | 0.8 | 4.36 | 1.1 | 106.4 | 32.3 | 24.5 | 39.0 | 169.9 | 95.8 |
2x6 | 7/1.04 | 3.12 | 0.8 | 4.80 | 1.1 | 106.5 |
| 28.6 | 42.4 | 177.5 |
|
2x10 | 7/1.35 | 4.05 | 1.0 | 6.10 | 1.2 | 179.5 | 54.0 | 44.7 | 57.7 | 281.9 | 156.4 |
3x0.75 | 1/0.97 | 0.97 | 0.6 | 2.17 | 0.9 | 19.7 |
| 12.2 | 22.6 | 54.5 |
|
3x1.0 | 1/1.13 | 1.13 | 0.6 | 2.33 | 0.9 | 26.8 |
| 13.4 | 24.0 | 64.1 |
|
3x1.5 | 1/1.38 | 1.38 | 0.7 | 2.78 | 0.9 | 44.8 |
| 18.8 | 28.0 | 91.6 |
|
3x2.5 | 1/1.78 | 1.78 | 0.8 | 3.38 | 1.0 | 66.4 | 20.1 | 26.6 | 37.4 | 130.4 | 84.1 |
3x4 | 1/2.25 | 2.25 | 0.8 | 3.85 | 1.1 | 106.1 | 32.2 | 31.5 | 46.6 | 184.2 | 110.3 |
3x4 | 7/0.85 | 2.55 | 0.8 | 4.20 | 1.1 | 106.7 |
| 35.9 | 50.4 | 193.0 |
|
3x6 | 1/2.76 | 2.76 | 0.8 | 4.36 | 1.1 | 159.7 | 48.4 | 36.7 | 52.0 | 248.4 | 137.1 |
3x6 | 7/1.04 | 3.12 | 0.8 | 4.80 | 1.1 | 159.8 |
| 42.9 | 57.0 | 259.7 |
|
3x10 | 7/1.35 | 4.05 | 1.0 | 6.10 | 1.2 | 269.3 | 81.1 | 67.1 | 77.8 | 414.2 | 226. |
