产品介绍

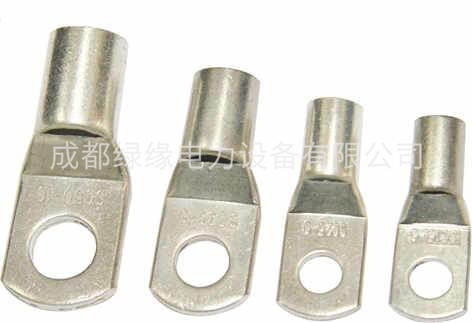

窥口鼻子主要适用范围:广泛应用于机床、纺机、电机、铁路、船舶、电控、仪表、计算机和家电等行业中。
家用电器,电气业,机械设备厂,船厂,配电柜配电箱等
产品外观规格良好,导电性能好,安全.
产品用途 : 适用于标称截面1.5-300平方,电气电缆式电线的铜导体与电气设备的连接.
产品特点: 长期工作温度-55℃-150℃,表面镀锡。
表一
型号 | 螺栓口直径d2(mm) | 尺寸(mm) | 导线截面 | |||
dφ | Dφ | L1 | L | |||
SC 1.5-5 | 5.2 | 1.8 | 3.7 | 5.0 | 16.0 | 1.5 |
SC 2.5-4 | 4.2 | 2.4 | 4.0 | 7.0 | 18.0 | 2.5 |
SC 2.5-5 | 5.2 | 2.4 | 4.0 | 7.0 | 20.0 | 2.5 |
SC 4-5 | 5.2 | 3.1 | 4.8 | 7.0 | 20.0 | 4 |
SC 4-6 | 6.5 | 3.1 | 4.8 | 7.0 | 20.0 | 4 |
SC 6-5 | 5.2 | 3.8 | 5.5 | 9.0 | 24.0 | 6 |
SC 6-6 | 6.5 | 3.8 | 5.5 | 9.0 | 24.0 | 6 |
SC6-8 | - | - | - | - | - | - |
SC 10-6 | 6.5 | 5 | 6.5 | 9.0 | 26.0 | 10 |
SC 10-8 | 8.4 | 5 | 6.5 | 9.0 | 26.0 | 10 |
SC 16-6 | 6.5 | 5.7 | 7.5 | 11.0 | 30.0 | 16 |
SC 16-8 | 8.4 | 5.7 | 7.5 | 11.0 | 30.0 | 16 |
SC16-10 | - | - | - | - | - | - |
SC 25-6 | 6.5 | 7.2 | 9.0 | 13.0 | 35.0 | 25 |
SC 25-8 | 8.4 | 7.2 | 9.0 | 13.0 | 35.0 | 25 |
SC25-10 | - | - | - | -; | - | - |
SC 35-8 | 8.4 | 8.5 | 10.8 | 13.5 | 38.0 | 35 |
SC 35-10 | 10.5 | 8.5 | 10.8 | 13.5 | 38.0 | 35 |
SC35-12 | - | - | - | - | - | - |
SC 50- 8 | 8.4 | 9.8 | 12.5 | 16.0 | 44.0 | 50 |
SC 50-10 | 10.5 | 9.8 | 12.5 | 16.0 | 44.0 | 50 |
SC50-12 | - | - | - | - | - | - |
SC 70-10 | 10.5 | 11.5 | 14.5 | 18.0 | 51.0 | 70 |
SC 70-12 | 13.0 | 11.5 | 14.5 | 18.0 | 51.0 | 70 |
表二
型号 | 螺栓口直径d2(mm) | 尺寸(mm) | 导线截面 | |||
dφ | Dφ | L1 | L | |||
SC95-8 | - | - | - | - | - | - |
SC 95-10 | 10.5 | 13.7 | 17.0 | 22.0 | 57.0 | 95 |
SC 95-12 | 13.0 | 13.7 | 17.0 | 22.0 | 57.0 | 95 |
SC120-10 | - | - | - | - | - | - |
SC 120-12 | 13.0 | 15.0 | 19.0 | 24.0 | 64.0 | 120 |
SC 120-16 | 17.0 | 15.0 | 19.0 | 24.0 | 64.0 | 120 |
SC 150-12 | 13.0 | 16.7 | 21.0 | 26.0 | 71.0 | 150 |
SC150-10 | - | - | - | - | - | - |
SC 150-16 | 17.0 | 18.5 | 23.0 | 30.0 | 79.0 | 185 |
SC185-14 | - | - | - | - | - | - |
SC 185-16 | 17.0 | 21.0 | 26.0 | 42.0 | 93.0 | 240 |
SC240-14 | - | - | - | - | - | - |
SC 240-16 | 17.0 | 21.0 | 26.0 | 42.0 | 93.0 | 240 |
SC 240-20 | 21.0 | 24.5 | 30.0 | 42.0 | 103.0 | 300 |
SC 300-16 | 17.0 | 24.5 | 30.0 | 42.0 | 103.0 | 300 |
SC 300-20 | 21.0 | 27.0 | 34.0 | 42.0 | 113.0 | 400 |
SC 400-16 | 17.0 | 27.0 | 34.0 | 42.0 | 113.0 | 400 |
SC 400-20 | 21.0 | 27.0 | 34.0 | 42.0 | 113.0 | 400 |
SC 500-16 | 17.0 | 30.0 | 38.0 | 48.0 | 123.0 | 500 |
SC 500-20 | 21.0 | 30.0 | 38.0 | 48.0 | 123.0 | 500 |
