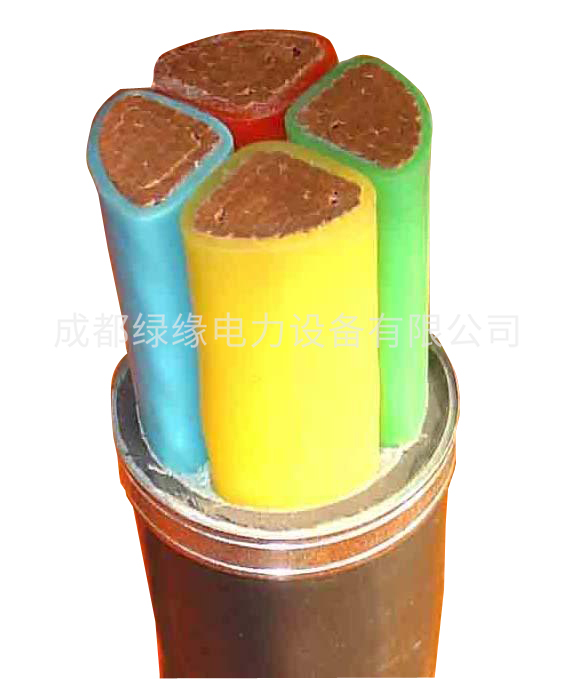

YJV系列YJV就是交联聚乙烯绝缘聚氯乙稀护套 电缆YJV-1 2*
YJV系列YJV就是交联聚乙烯绝缘聚氯乙稀护套 电缆YJV-1 2*
详情请咨询客服人员
电话：028-87703039
24小时热线：028-68538156
YJV系列YJV就是交联聚乙烯绝缘聚氯乙稀护套 电缆YJV-1 2*产品参数：
| 导体标称截面 | 绝缘厚度 | 护套厚度 | 电缆近似外径 | 电缆近似重量 | 导体直流电阻 | 试验电压 | 电缆载流量 | |
| 在空气中 | 直埋土壤中 | |||||||
| mm² | mm | mm | mm | kg/km | Ω/km | KV | A | A |
| 2×1.5 | 0.7 | 1.8 | 9.4 | 103 | ≤12.1 | 3.5 | 25 | 30 |
| 2×2.5 | 0.7 | 1.8 | 10.2 | 131 | ≤7.41 | 3.5 | 30 | 35 |
| 2×4 | 0.7 | 1.8 | 11.2 | 168 | ≤4.61 | 3.5 | 40 | 50 |
| 2×6 | 0.7 | 1.8 | 12.2 | 216 | ≤3.08 | 3.5 | 50 | 60 |
| 2×10 | 0.7 | 1.8 | 15.2 | 328 | ≤1.83 | 3.5 | 65 | 80 |
| 2×16 | 0.7 | 1.8 | 17.3 | 461 | ≤1.15 | 3.5 | 85 | 100 |
| 2×25 | 0.9 | 1.8 | 20.4 | 659 | ≤0.727 | 3.5 | 115 | 130 |
| 2×35 | 0.9 | 1.8 | 22.4 | 868 | ≤0.524 | 3.5 | 145 | 155 |
| 2×50 | 1 | 1.8 | 20.2 | 1116 | ≤0.387 | 3.5 | 175 | 185 |
| 2×70 | 1.1 | 1.8 | 22.5 | 1514 | ≤0.268 | 3.5 | 220 | 225 |
| 2×95 | 1.1 | 1.8 | 25.4 | 2017 | ≤0.193 | 3.5 | 270 | 270 |
| 2×120 | 1.2 | 1.9 | 28.3 | 2526 | ≤0.153 | 3.5 | 315 | 305 |
| 2×150 | 1.4 | 2 | 31.3 | 3139 | ≤0.124 | 3.5 | 360 | 345 |
