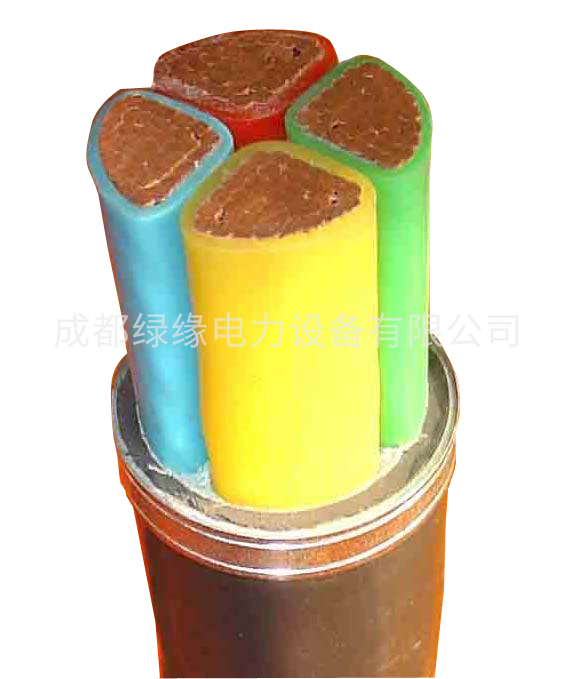

YJV系列YJV就是交联聚乙烯绝缘聚氯乙稀护套电缆YJV-1 1*
详情请咨询客服人员
电话:028-87703039
24小时热线:028-68538156
YJV系列YJV就是交联聚乙烯绝缘聚氯乙稀护套电缆YJV-1 1*产品参数:
导体标称截面 | 绝缘厚度 | 护套厚度 | 电缆近似外径 | 电缆近似重量 | 导体直流电阻 | 试验电压 | 电缆载流量 | |
在空气中 | 直埋土壤中 | |||||||
mm² | mm | mm | mm | kg/km | Ω/km | KV | A | A |
1×1.5 | 0.7 | 1.5 | 5.8 | 53 | ≤12.1 | 3.5 | 25 | 35 |
1×2.5 | 0.7 | 1.5 | 6.2 | 68 | ≤7.41 | 3.5 | 30 | 45 |
1×4 | 0.7 | 1.5 | 6.7 | 87 | ≤4.61 | 3.5 | 45 | 60 |
1×6 | 0.7 | 1.5 | 7.2 | 110 | ≤3.08 | 3.5 | 55 | 70 |
1×10 | 0.7 | 1.5 | 8 | 115 | ≤1.83 | 3.5 | 75 | 95 |
1×16 | 0.7 | 1.5 | 8.9 | 220 | ≤1.15 | 3.5 | 100 | 125 |
1×25 | 0.9 | 1.5 | 10.4 | 345 | ≤0.727 | 3.5 | 140 | 160 |
1×35 | 0.9 | 1.5 | 11.5 | 424 | ≤0.524 | 3.5 | 175 | 190 |
1×50 | 1 | 1.5 | 13 | 55 | ≤0.387 | 3.5 | 210 | 225 |
1×70 | 1.1 | 1.5 | 14 | 770 | ≤0.268 | 3.5 | 270 | 280 |
1×95 | 1.1 | 1.5 | 16.4 | 1040 | ≤0.193 | 3.5 | 340 | 335 |
1×120 | 1.2 | 1.5 | 17.8 | 1290 | ≤0.153 | 3.5 | 400 | 380 |
1×150 | 1.4 | 2 | 20.6 | 1590 | ≤0.124 | 3.5 | 460 | 425 |
1×185 | 1.6 | 2 | 22.5 | 1944 | ≤0.0991 | 3.5 | 530 | 480 |
1×240 | 1.7 | 2 | 24.9 | 2410 | ≤0.0754 | 3.5 | 625 | 555 |
1×300 | 1.8 | 2.5 | 27.3 | 3076 | ≤0.0601 | 3.5 | 720 | 630 |
1×400 | 2 | 2.5 | 34.1 | 3642 | ≤0.0470 | 3.5 | 815 | 705 |
