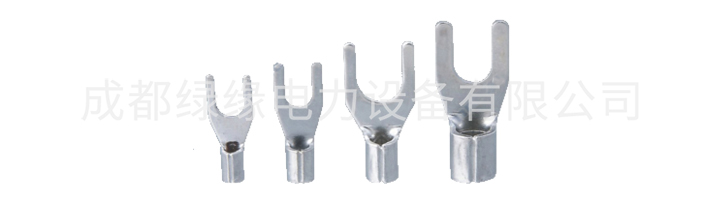

UT叉形冷压线鼻
一、产品特点
UT叉形冷压线鼻是电缆电线接头中最常用的一种叉形裸端头；产品质量可靠价格低廉，操作方便。
二、产品用途
适用于家用电器，电企业，机械设备厂，船厂，配电柜配电箱等，产品外观规格良好，导电性能好，安全。
三、产品材质
紫铜，黄铜 表面处理：镀银焊口 国标规格
UT叉形冷压线鼻技术参数：
| 型号 | 尺寸mm | ||||||
| 孔径d2 | 外圆宽B | 总长L | 标准F | 压线脚长度E | 压线脚外圆宽D | 压线脚内圆宽d | |
| UT0.5-3 | 3.2 | 6 | 13.2 | 6.1 | 4.1 | 2.2 | 1.4 |
| UT0.5-4 | 4.2 | 7 | 15 | 7.3 | 4.2 | 2.2 | 1.4 |
| UT1-3S | 3.2 | 5.6 | 14 | 6.2 | 5 | 3 | 2.2 |
| UT1-3M | 3.2 | 6 | 15 | 7 | 5 | 3 | 2 |
| UT1-4 | 4.2 | 7 | 15.4 | 6.9 | 5 | 3 | 2 |
| UT1-5 | 5.2 | 9.6 | 17 | 7.2 | 5 | 3 | 2 |
| UT1-6 | 6.2 | 11 | 20 | 9.5 | 5 | 3 | 2 |
| UT1.5-3S | 3.2 | 5.8 | 14 | 6 | 5.1 | 3.3 | 2.5 |
| UT1.5-3M | 3.2 | 6 | 15.8 | 7.7 | 5.1 | 3.3 | 2.3 |
| UT1.5-4 | 4.2 | 8 | 16 | 6.9 | 5.1 | 3.3 | 2.3 |
| UT1.5-5 | 5.2 | 10 | 18 | 7.9 | 5.1 | 3.3 | 2.3 |
| UT1.5-6 | 6.2 | 11 | 20 | 9.4 | 5.1 | 3.3 | 2.3 |
| UT1.5-8 | 8.2 | 14 | 25 | 12.9 | 5.1 | 3.3 | 2.3 |
| UT1.5-10 | 10.5 | 15.2 | 26 | 13.3 | 5.1 | 3.3 | 2.3 |
| UT2.5-3 | 3.2 | 6 | 16 | 7.9 | 5.1 | 4 | 2.8 |
| UT2.5-4 | 4.2 | 8 | 16.3 | 7.2 | 5.1 | 4 | 2.8 |
| UT2.5-5 | 5.2 | 10 | 16 | 5.9 | 5.1 | 4 | 2.8 |
| UT2.5-6 | 6.2 | 11 | 20 | 9.4 | 5.1 | 4 | 2.8 |
| UT2.5-8 | 8.2 | 14.2 | 25 | 12.8 | 5.1 | 4 | 2.8 |
| UT2.5-10 | 10.5 | 15.6 | 27 | 14.1 | 5.1 | 4 | 2.8 |
| UT4-4 | 4.2 | 7.8 | 18 | 8.1 | 6 | 5 | 3.6 |
| UT4-5 | 5.2 | 10 | 18.5 | 7.5 | 6 | 5 | 3.6 |
| UT4-6 | 6.2 | 11 | 21.4 | 9.9 | 6 | 5 | 3.6 |
| UT4-8 | 8.2 | 14 | 25 | 12 | 6 | 5 | 3.6 |
| UT4-10 | 10.5 | 18 | 30 | 15 | 6 | 5 | 3.6 |
| UT6-4 | 4.2 | 8 | 19.2 | 8.2 | 7 | 6 | 4.4 |
| UT6-5 | 5.2 | 10 | 20.5 | 8.5 | 7 | 6 | 4.4 |
| UT6-6 | 6.2 | 12 | 22.5 | 9.5 | 7 | 6 | 4.4 |
| UT6-8 | 8.2 | 14.8 | 26 | 11.6 | 7 | 6 | 4.4 |
| UT6-10 | 10.5 | 18 | 30 | 14 | 7 | 6 | 4.4 |
| UT10-6 | - | - | - | - | - | - | - |
| UT10-8 | - | - | - | - | - | - | - |
| UT16-6 | - | - | - | - | - | - | - |
| UT16-8 | - | - | - | - | - | - | - |
