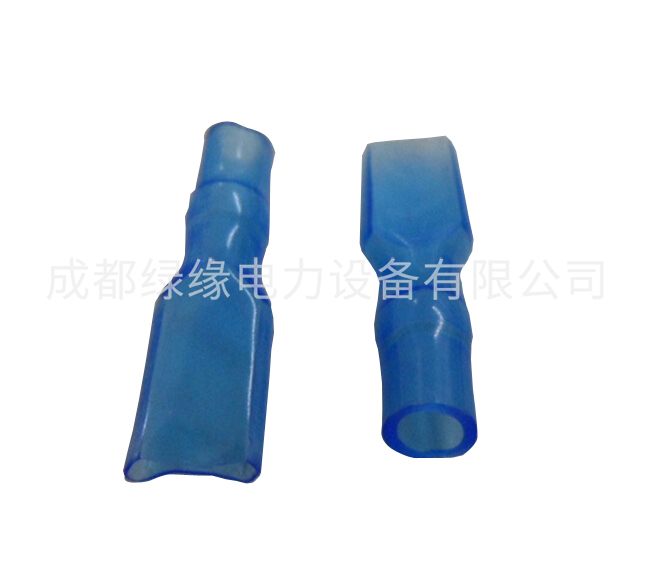

插簧护套
插簧护套技术参数
1、温度范围：＜105℃。
2、额定电压：300V AC/DC
3、额定电流：15A max
4、接触电阻：≤0.01Ω
5、绝缘电阻：≥4MΩ
6、材料：PVC
插簧护套产品参数：
| 系列 | 规格 | 尺寸（mm） | ||||
| D | E | L | W | H | ||
| 110直软 | 2.5 | 2.5 | 15.5 | 20.0 | 3.8 | 2.0 |
| 3.0 | 3.0 | 15.5 | 20.0 | 3.8 | 2.0 | |
| 3.7 | 3.7 | 15.5 | 20.0 | 3.8 | 2.0 | |
| 187直软 | 2.5 | 2.5 | 17.5 | 22.0 | 5.8 | 2.3 |
| 2.8 | 2.8 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 3.0 | 3.0 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 3.2 | 3.2 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 3.5 | 3.5 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 4.0 | 4.0 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 4.5 | 4.5 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 250直软 | 2.5 | 2.5 | 20.0 | 25.0 | 7.8 | 3.3 |
| 2.8 | 2.8 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.0 | 3.0 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.2 | 3.2 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.5 | 3.5 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.7 | 3.7 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 4.0 | 4.0 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 4.5 | 4.5 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 5.0 | 5.0 | 20.0 | 25.0 | 7.8 | 3.3 | |
