一、产品介绍

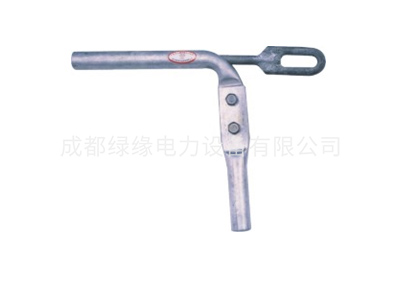

NY耐张线夹(液压型、钢锚焊接)主要用于固定导线,以承受导线张力,并将导线挂至耐张串组或杆塔上的金具。
二、产品特点
a、夹体采用高强度铝钢材料制造。
b、外表光洁,使用寿命长。
c、安装使用简便。
d、无磁滞损耗,是低碳、节能认证产品。
NY液压型耐张线夹型号及参数:
型号 | 适用导线 | 主要尺寸(mm) | 握力(≥kN) | ||||||
D1 | D2 | D3 | C | L2 | L1 | L3 | |||
NY-95/15 | LGJ-95/15 | 30 | 14 | 16 | 20 | 55 | 390 | 190 | 33.5 |
NY-95/20 | LGJ-95/20 | 390 | 35.5 | ||||||
NY-120/20 | LGJ-120/20 | 445 | 39.0 | ||||||
NY-120/25 | LGJ-120/25 | 435 | 45.5 | ||||||
NY-150/20 | LGJ-150/20 | 30 | 14 | 16 | 20 | 55 | 425 | 205 | 44.0 |
NY-150/25 | LGJ-150/25 | 14 | 16 | 20 | 55 | 445 | 205 | 51.5 | |
NY-150/35 | LGJ-150/35 | 16 | 16 | 20 | 55 | 465 | 205 | 62.0 | |
NY-185/25 | LGJ-185/25 | 32 | 14 | 16 | 20 | 55 | 465 | 205 | 56.5 |
NY-185/30 | LGJ-185/30 | 14 | 16 | 20 | 55 | 465 | 205 | 61.5 | |
NY-185/45 | LGJ-185/45 | 34 | 18 | 18 | 22 | 55 | 485 | 205 | 76.5 |
NY-240/30 | LGJ-240/30 | 36 | 16 | 18 | 22 | 55 | 510 | 220 | 72.0 |
NY-240/40 | LGJ-240/40 | 16 | 18 | 22 | 55 | 505 | 220 | 79.0 | |
NY-240/55 | LGJ-240/55 | 36 | 20 | 20 | 24 | 65 | 555 | 220 | 97.0 |
NY-300/15 | LGJ-300/15 | 40 | 14 | 16 | 20 | 55 | 500 | 260 | 65.0 |
NY-300/20 | LGJ-300/20 | 14 | 18 | 22 | 55 | 505 | 260 | 72.0 | |
NY-300/25 | LGJ-300/25 | 14 | 18 | 22 | 55 | 520 | 260 | 79.5 | |
NY-300/40 | LGJ-300/40 | 40 | 16 | 20 | 24 | 65 | 545 | 260 | 88.0 |
NY-300/50 | LGJ-300/50 | 18 | 20 | 24 | 65 | 570 | 260 | 98.5 | |
NY-300/70 | LGJ-300/70 | 42 | 22 | 22 | 26 | 70 | 625 | 260 | 122.0 |
NY-400/20 | LGJ-400/20 | 45 | 14 | 18 | 22 | 55 | 560 | 270 | 84.5 |
NY-400/25 | LGJ-400/25 | 14 | 18 | 22 | 55 | 560 | 270 | 91.0 | |
NY-400/35 | LGJ-400/35 | 16 | 20 | 24 | 78 | 590 | 270 | 99.0 | |
NY-400/50 | LGJ-400/50 | 20 | 22 | 26 | 70 | 615 | 270 | 117.0 | |
NY-400/65 | LGJ-400/65 | 48 | 22 | 22 | 26 | 70 | 650 | 270 | 128.0 |
NY-400/95 | LGJ-400/95 | 26 | 24 | 30 | 80 | 695 | 270 | 163.0 |
型号 | 适用导线 | 主要尺寸(mm) | 握力(≥kN) | ||||||
D1 | D2 | D3 | C | L2 | L1 | L3 | |||
NY-150Q | LGJQ-150 | 30 | 14 | 16 | 20 | 55 | 440 | 205 | 39 |
NY-185Q | LGJQ-185 | 32 | 14 | 16 | 20 | 55 | 480 | 205 | 48 |
NY-240Q | LGJQ-240 | 36 | 16 | 18 | 22 | 55 | 535 | 220 | 66 |
NY-300Q | LGJQ-300 | 40 | 16 | 20 | 24 | 65 | 570 | 260 | 80 |
NY-400Q | LGJQ-400 | 45 | 20 | 22 | 27 | 70 | 620 | 270 | 103 |
NY-500Q | LGJQ-500 | 52 | 22 | 22 | 31 | 75 | 640 | 255 | 129 |
NY-600Q | LGJQ-600 | 60 | 22 | 24 | 33 | 83 | 665 | 285 | 151 |
NY-120J | LGJQ-120 | 30 | 14 | 16 | 20 | 55 | 450 | 190 | 43 |
NY-150J | LGJQ-150 | 30 | 16 | 16 | 20 | 55 | 480 | 205 | 59 |
NY-185J | LGJQ-185 | 34 | 18 | 18 | 22 | 55 | 510 | 205 | 68 |
NY-240J | LGJQ-240 | 36 | 20 | 20 | 24 | 65 | 570 | 220 | 89 |
NY-300J | LGJQ-300 | 42 | 22 | 22 | 26 | 70 | 630 | 260 | 119 |
NY-400J | LGJQ-400 | 48 | 26 | 24 | 31 | 83 | 710 | 270 | 153 |
