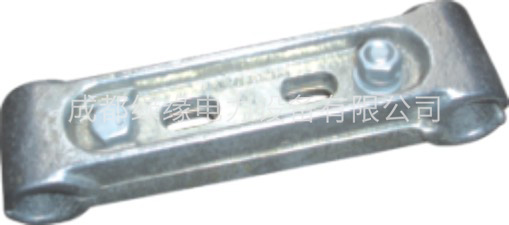

MRJ型双分裂软母线间隔棒
一、产品用途
MRJ型双分裂软母线间隔棒适用于将软母线及其引下线的线间距离保持不变且两根线不碰击。
二、产品特点
a、握力好，固定线路牢固。
b、节能设计，线路损耗小。
c、绝缘性好，不伤导线。
d、安装方便，维护简单。
e、结构紧凑，美观大方
MRJ型双分裂软母线间隔棒参数型号：
| 型号 | 适用母线规格 (mm) | 主要尺寸 (mm) | ||
| A | R | L | ||
| MRJ-4/120 | 18.1-22.0 | 50 | 11 | 120 |
| MRJ-5/120 | 23.0-29.0 | 60 | 14 | 120 |
| MRJ-6/120 | 29.1-35.0 | 70 | 17 | 120 |
| MRJ-4/200 | 18.1-22.0 | 50 | 11 | 200 |
| MRJ-5/200 | 23.0-29.0 | 60 | 14 | 200 |
| MRJ-6/200 | 29.0-35.0 | 70 | 17 | 200 |
| MRJ-4/400 | 18.1-22.0 | 50 | 11 | 400 |
| MRJ-5/400 | 23.0-29.0 | 60 | 14 | 400 |
| MRJ-6/400 | 29.0-35.0 | 70 | 17 | 400 |
| MRJ-9/120 | 45.0-49.0 | 60 | 24 | 120 |
| MRJ-9/200 | 45.0-49.0 | 60 | 24 | 200 |
| MRJ-9/400 | 45.0-49.0 | 60 | 24 | 400 |
| MRJ-10/200 | 50.0-55.0 | 70 | 26 | 200 |
| MRJ-10/400 | 50.0-55.0 | 70 | 26 | 400 |
| 型号 | 适用母线规格 (mm) | 主要尺寸 (mm) | 重量(kg) | |||
| A | B | L | R | |||
| MRJ-600K/120 | LGKK-600 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-600K/200 | LGKK-600 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-600K/400 | LGKK-600 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-600K/450 | LGKK-600 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-900K/120 | LGKK-900 | 50 | 65 | 120 | 26 | 0.7 |
| MRJ-900K/200 | LGKK-900 | 50 | 68 | 200 | 26 | 2.2 |
| MRJ-900K/400 | LGKK-900 | 50 | 68 | 400 | 26 | 2.5 |
| MRJ-900K/450 | LGKK-900 | 50 | 68 | 450 | 26 | 3.3 |
| MRJ-1400K/400 | LGKK-1400 | 70 | 83 | 400 | 29 | 3.5 |
| MRJ-1400/120 | LGJQT-1400 | 50 | 68 | 120 | 26 | 0.7 |
| MRJ-1400/200 | LGJQT-1400 | 50 | 68 | 200 | 26 | 2.2 |
| MRJ-1400/400 | LGJQT-1400 | 60 | 70 | 400 | 26 | 2.5 |
| MRJ-1400/450 | LGJQT-1400 | 60 | 70 | 450 | 26 | 3.3 |
| MRJ-1440N/200 | NAHLGJQ-1400 | 60 | 70 | 200 | 26 | 2.2 |
| MRJ-1440N/400 | NAHLGJQ-1400 | 60 | 70 | 400 | 26 | 2.5 |
