一、产品介绍
铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽绕包屏蔽控制电缆铺设在大磁场室内、电缆内、管道、直埋、垂挂,能承受较大拉力的固定场合。
二、使用特性
1、工频额定电压Uo/U为450/750V或0.6/1KV。
2、电缆导体的允许的长期最高工作温度为70℃。
3、电缆敷设时环境温度应不低于0℃,若环境温度低于0℃时,应对电缆进行预热。
4、电缆的推荐允许弯曲半径如下:
a、无铠装电缆应不低于电缆外径的6倍;
b、铠装后铜带屏蔽电缆,应不低于电缆外径的12倍;
c、屏蔽软电缆,应不低于电缆外径的6倍。

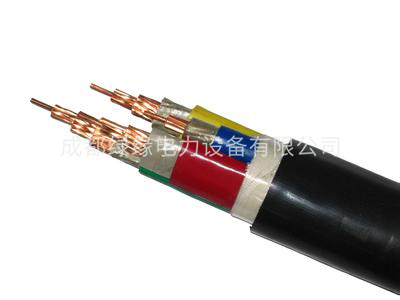

KVVP2 2×1.5-5×10控制电缆产品参数:
芯数×导体标称截面mm² | 导体结构mm | 绝缘厚度mm | 铜带厚度mm | 护套厚度mm | 电缆近似外径mm | 电缆近似重量kg/km | ||||
450/750V | 0.6/1kv | 450/750V | 0.6/1kv | 450/750V
| 0.6/1kv | 450/750V | 0.6/1kv | |||
2×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.05 | 1.2 | 1.8 | 8.6 | 9.6 | 104 | 130 |
2×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.05 | 1.2 | 1.8 | 9.8 | 10.8 | 153 | 166 |
2×4 | 1/2.25 | 0.8 | 1.0 | 1×0.05 | 1.2 | 1.8 | 10.7 | 11.8 | 194 | 216 |
2×6 | 1/2.76 | 0.8 | 1.0 | 1×0.05 | 1.2 | 1.8 | 11.7 | 12.8 | 246 | 270 |
2×10 | 7/1.35 | 1.0 | 1.0 | 1×0.05 | 1.5 | 1.8 | 15.7 | 16.2 | 399 | 405 |
3×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.05 | 1.2 | 1.8 | 9.0 | 10.0 | 126 | 155 |
3×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.05 | 1.2 | 1.8 | 10.3 | 11.3 | 187 | 201 |
3×4 | 1/2.25 | 0.8 | 1.0 | 1×0.05 | 1.2 | 1.8 | 11.3 | 12.3 | 244 | 270 |
3×6 | 1/2.25 | 0.8 | 1.0 | 1×0.05 | 1.2 | 1.8 | 12.4 | 13.4 | 316 | 245 |
3×10 | 7/1.35 | 1.0 | 1.0 | 1×0.05 | 1.5 | 1.8 | 16.6 | 17.1 | 517 | 524 |
4×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.05 | 1.2 | 1.8 | 8.2 | 10.3 | 102 | 145 |
4×1 | 1/1.13 | 0.6 | 0.8 | 1×0.05 | 1.2 | 1.8 | 8.6 | 10.6 | 117 | 161 |
4×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.05 | 1.2 | 1.8 | 9.7 | 11.2 | 152 | 190 |
4×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.05 | 1.5 | 1.8 | 11.8 | 11.2 | 228 | 243 |
4×4 | 1/2.25 | 0.8 | 1.0 | 1×0.05 | 1.5 | 1.8 | 12.9 | 14.3 | 301 | 344 |
4×6 | 1/2.76 | 0.8 | 1.0 | 1×0.05 | 1.5 | 1.8 | 14.1 | 15.5 | 394 | 441 |
4×10 | 7/1.35 | 1.0 | 1.0 | 1×0.05 | 1.7 | 1.8 | 18.6 | 18.7 | 650 | 657 |
5×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.05 | 1.2 | 1.8 | 8.9 | 11.0 | 119 | 167 |
5×1 | 1/1.13 | 0.6 | 0.8 | 1×0.05 | 1.2 | 1.8 | 9.3 | 11.4 | 137 | 187 |
5×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.05 | 1.5 | 1.8 | 11.1 | 12.1 | 194 | 221 |
5×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.05 | 1.5 | 1.8 | 12.7 | 13.2 | 270 | 287 |
5×4 | 1/2.25 | 0.8 | 1.0 | 1×0.05 | 1.5 | 1.8 | 14.0 | 15.5 | 360 | 410 |
5×6 | 1/2.76 | 0.8 | 1.0 | 1×0.05 | 1.5 | 1.8 | 15.4 | 16.9 | 475 | 530 |
5×10 | 1/1.35 | 1.0 | 1.0 | 1×0.05 | 1.7 | 1.8 | 20.3 | 20.4 | 787 | 759 |
