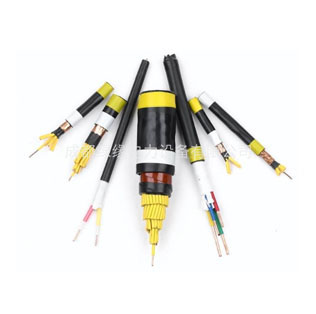

KVV22 19×0.75-61×2.5 控制电缆
产品介绍
KVV22 19×0.75-61×2.5 控制电缆
使用特性：额定电压：U0/U为450/750V
电缆导体的允许长期最高工作温度为70℃。电缆敷设时环境温度不低于0℃。电缆的允许弯曲半径：无铠装层及有纺织屏蔽的电缆，应不小于电缆外径的6倍；有铠装或铜带屏蔽结构的电缆，应不小于电缆外径的12倍
用途：本产品供交流额定电压500V或直流电压1000V及以下配电装置中电器，仪表接线之用。
KVV22 19×0.75-61×2.5 控制电缆规格参数：
| 芯数×标称截面 | 电缆参考外径mm | 电缆参考重量mm | 20℃******直流电阻 | 70℃最小绝缘电阻 |
| 19×0.75 | 17.8 | 489 | 24.5 | 0.012 |
| 19×1.0 | 19.0 | 576 | 18.1 | 0.011 |
| 19×1.5 | 21.3 | 744 | 12.1 | 0.011 |
| 19×2.5 | 24.4 | 1032 | 7.41 | 0.010 |
| 24×0.75 | 20.5 | 611 | 24.5 | 0.012 |
| 24×1.0 | 21.4 | 399 | 18.1 | 0.011 |
| 24×1.5 | 24.2 | 912 | 12.1 | 0.011 |
| 24×2.5 | 27.9 | 1275 | 7.41 | 0.010 |
| 27×0.75 | 20.8 | 646 | 24.51 | 0.012 |
| 27×1.0 | 21.8 | 743 | 18.1 | 0.011 |
| 27×1.5 | 24.6 | 974 | 12.1 | 0.011 |
| 27×2.5 | 28.4 | 1371 | 7.41 | 0.010 |
| 30×0.75 | 21.4 | 692 | 24.5 | 0.012 |
| 30×1.0 | 22.4 | 799 | 18.1 | 0.011 |
| 30×1.5 | 25.4 | 1052 | 12.1 | 0.011 |
| 30×2.5 | 29.3 | 1489 | 7.41 | 0.010 |
| 37×0.75 | 22.7 | 796 | 24.5 | 0.012 |
| 37×1.0 | 23.8 | 924 | 18.1 | 0.011 |
| 37×1.5 | 27.0 | 1227 | 12.1 | 0.011 |
| 37×2.5 | 33.1 | 2092 | 7.41 | 0.010 |
| 44×0.75 | 24.9 | 923 | 24.5 | 0.012 |
| 44×1.0 | 26.2 | 1075 | 18.1 | 0.011 |
| 44×1.5 | 31.7 | 1757 | 12.1 | 0.011 |
| 44×2.5 | 37.0 | 2472 | 7.41 | 0.010 |
| 48×0.75 | 25.3 | 970 | 24.5 | 0.012 |
| 48×1.0 | 26.6 | 1133 | 18.1 | 0.011 |
| 48×1.5 | 32.2 | 1845 | 12.1 | 0.011 |
| 48×2.5 | 37.6 | 2607 | 7.41 | 0.010 |
| 52×0.75 | 25.9 | 1027 | 24.5 | 0.012 |
| 52×1.0 | 27.2 | 1203 | 18.1 | 0.011 |
| 52×1.5 | 32.9 | 1952 | 12.1 | 0.011 |
| 52×2.5 | 38.5 | 2767 | 7.41 | 0.010 |
| 61×0.75 | 27.2 | 1153 | 24.5 | 0.012 |
| 61×1.0 | 28.6 | 1356 | 18.1 | 0.011 |
| 61×1.5 | 34.6 | 2187 | 12.1 | 0.011 |
| 61×2.5 | 40.5 | 3122 | 7.41 | 0.010 |
